Photovoltaic Cable

Home Products Photovoltaic Cable

Photovoltaic Cable

[ Photovoltaic Cable ]

Photovoltaic Cable

[ Product Overview ]

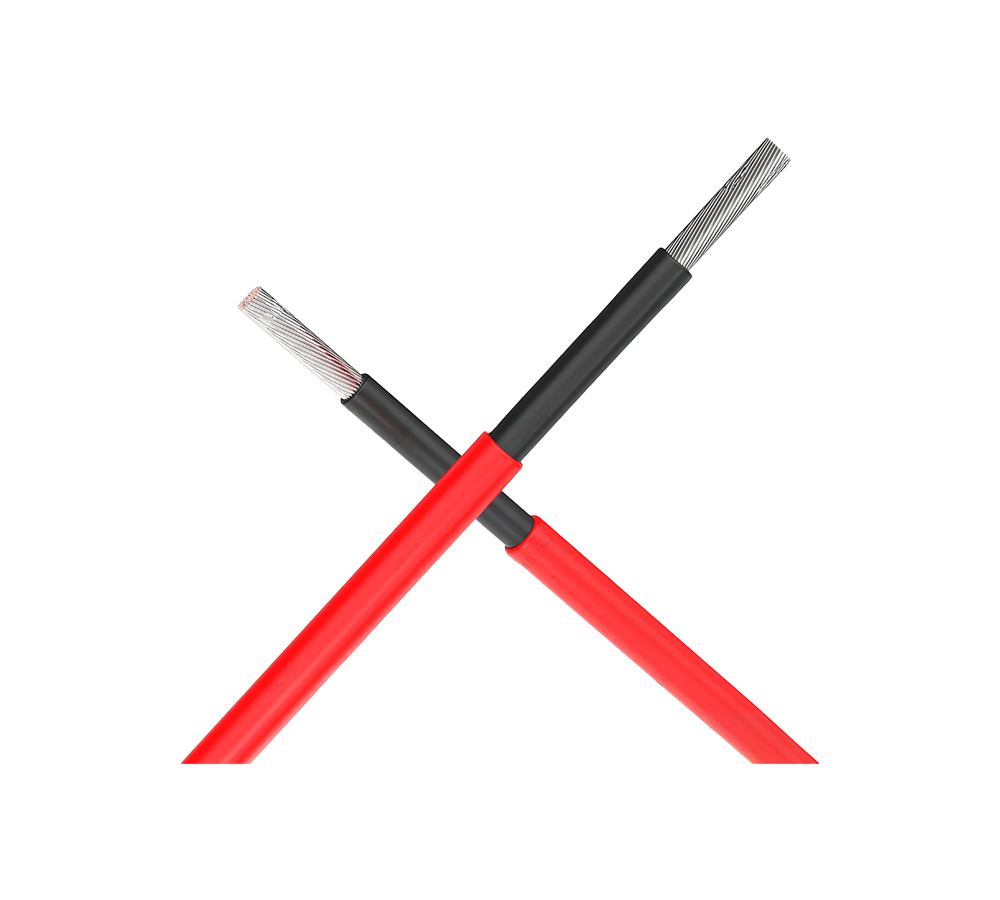

Photovoltaic cables are special cables used in solar photovoltaic power generation systems. They are mainly used for DC power transmission between photovoltaic modules and between modules and inverters. The products have excellent weather resistance, UV resistance, high and low temperature resistance and other characteristics, and are suitable for harsh outdoor environments.

Catalog

Contact

All Product Categories

Details

Product Details

Economical

Safe and Reliable

High Insulation Strength

Easy Installation

[: 001 ]

Product Categories

model	name	standard
PV1-F	Cross-linked polyolefin insulated cable for photovoltaic use	TUV 2 PfG 1169
H1Z2Z2-K	Cross-linked polyolefin insulated sheathed cable for photovoltaic use	EN 50618
PV-WDZ	Halogen-free low-smoke flame-retardant photovoltaic cable	GB/T 33594

[: 002 ]

Voltage Level

DC 1.8kV (connection between modules)

DC 0.6/1kV (array to inverter)

[: 003 ]

Technical Parameters

conductor

Material：

Tinned copper conductor (anti-oxidation)

section:

2.5-35mm² (commonly used 4mm², 6mm²)

structure:

Category 5 stranded (high flexibility)

Insulation and sheath

Insulation material index:

Cross-linked polyolefin (XLPO)

Sheath material index:

Halogen-free cross-linked polyolefin

Sheath thickness index:

0.5-1.0mm

Outside diameter tolerance index:

±0.1mm

Electrical properties

Conductor resistance standard value:

≤5.09Ω/km（4mm²）

Withstand voltage test standard value 6.5kV/5min (1.8kV level)

Insulation resistance standard value ≥ 1000MΩ·km

Environmental characteristics

Temperature range:

-40℃～+120℃

UV protection index:

Passed 3000 hours QUV test

Acid and alkali resistance indicators:

Pass pH 2-12 solution test

Flame retardant grade:

IEC 60332-1 (optional V0 level)

[: 004 ]

Product Features

Special material formula

Anti-UV and antioxidant added to the insulation layer

The sheath has passed the 1000-hour xenon lamp aging test

Outstanding safety performance

Passed TUV certified tracking test (> 600V)

Halogen-free formula (toxicity index ≤5 when burning)

Waterproof type (KVVP2-22) passed IP67 test

Installation Advantages

Bending radius ≥4D at 90℃

Maximum allowable DC system voltage: 1.8kV

Long life design

Expected service life: 25 years (outdoor)

Passed -40℃ low temperature impact test

[: 005 ]

Application Scenarios

In photovoltaic systems, PV1-F cables are recommended for inter-module connections. The typical specification is 4mm² and there are two colors, red and black, to distinguish the lines.

For the connection between the string and the combiner box, the H1Z2Z2-K cable is an ideal choice. Its typical specification is 6mm² and it has double insulation characteristics to ensure safe and stable connection.

For rooftop photovoltaic systems, it is recommended to use PV-WDZ type cables with flame-retardant 10mm² specifications to ensure power safety in complex rooftop environments.

In the construction of photovoltaic power stations, PV1-F type cables are also applicable, but 35mm² orange cables will be used to meet the larger current transmission requirements of the power station.

Different application locations are matched with cables of corresponding models and specifications according to their environment and transmission requirements, so as to ensure the efficient and safe operation of the photovoltaic system.

[: 006 ]

Selection Guide

Select by current

When the module current does not exceed 10A, it is recommended to use cables with a cross-section of 4mm². The maximum laying length of the cables can reach 100m to ensure stable current transmission.

If the module current is in the range of 10-15A, a cable with a cross-section of 6mm² is a suitable choice. At this time, the maximum cable length should be controlled within 80m to avoid excessive losses due to excessive line length.

When the module current is in the range of 15-20A, a cable with a cross-section of 10mm² should be used, and the maximum cable length is limited to 50m to ensure the safety and effectiveness of current transmission.

In general, the current of the components directly affects the selection of the recommended cable cross-section and the maximum laying length. Only reasonable matching can ensure the efficient operation of the circuit system.

Select by environment

General environment:

PV1-F

Alpine areas:

-40℃ Special Type

Fire prevention places:

PV-WDZ

Color classification

positive electrode:

red

negative electrode:

black

Grounding:

Yellow Green

[: 007 ]

Installation Guidelines

Laying requirements

Fixed spacing:

Horizontal ≤ 0.5m, vertical ≤ 1m It is forbidden to lay it in the same pipe with AC cables

Minimum bending radius:

4 times the cable diameter (when installed)

Connection requirements (using MC4 professional connector)

Stripping length:

12±1mm

Crimping pressure:

≥8kN（4mm²）

Precautions

Avoid mechanical damage (especially when laying on roofs)

Allow for length change caused by temperature

[: 008 ]

Certification Standards

In the field of photovoltaic product certification, the TUV certification agency conducts UV resistance, high temperature resistance and other test items on products based on the 2 PfG 1169 standard to ensure the stability and reliability of the products in complex lighting and high temperature environments.

UL certification is based on the 4703 standard, focusing on testing the combustion performance of photovoltaic products to assess the safety of products in extreme situations such as fire.

CQC certification follows the GB/T 33594 standard and provides professional certification services for domestic photovoltaic products to ensure that the products meet the quality and safety requirements of the domestic market.

Different certification bodies rely on their own standards and testing items to conduct strict inspections of photovoltaic products from multiple dimensions, providing strong guarantees for product quality and market access.

Execution Standards

UL certification is based on the 4703 standard, focusing on testing the combustion performance of photovoltaic products to assess the safety of products in extreme situations such as fire.

Product Packaging

UV-resistant packaging reels

Standard length: 100m/roll (4-6mm²)

Quality Assurance

Storage period: no more than 24 months

Warranty commitment: 10-year material warranty

Note: Customized lengths, colors and special performance (such as rat and ant resistance, oil resistance, etc.) products can be provided according to customer needs.
