Mineral insulated fire resistant cable

Home Products Mineral insulated fire resistant cable

Mineral insulated fire resistant cable

[ Mineral insulated fire resistant cable ]

Mineral insulated fire resistant cable

[ Product Overview ]

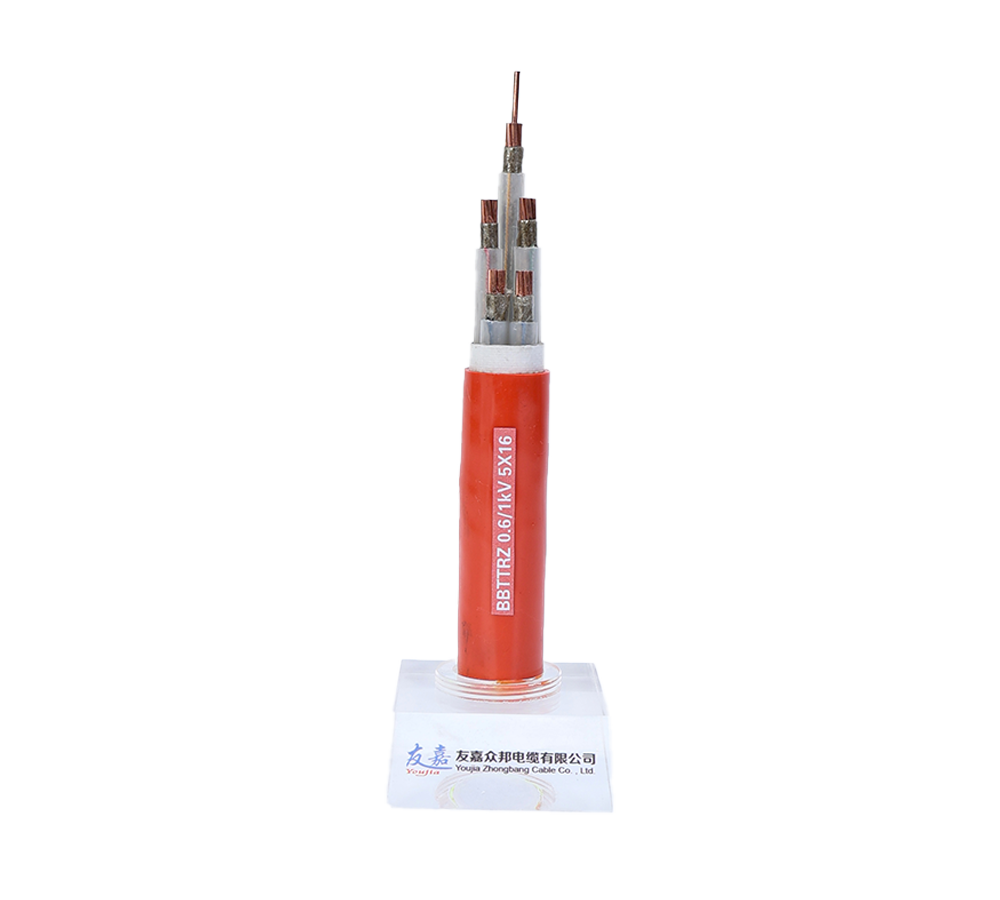

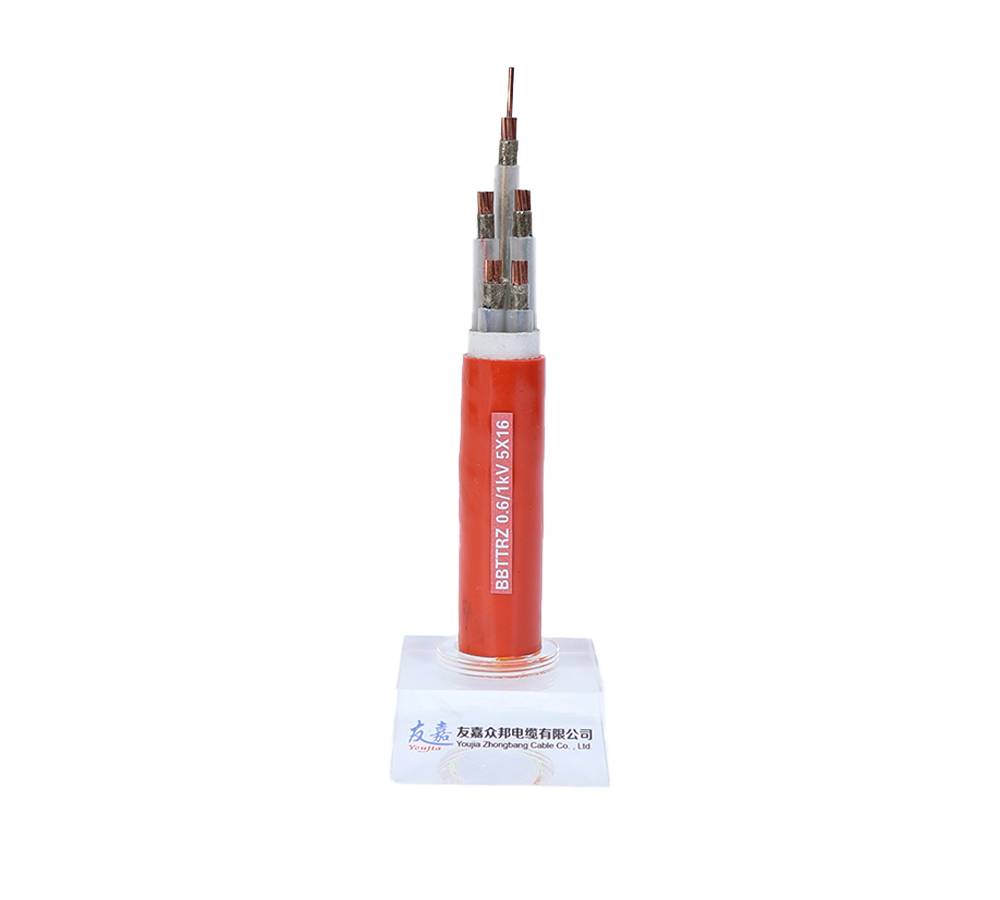

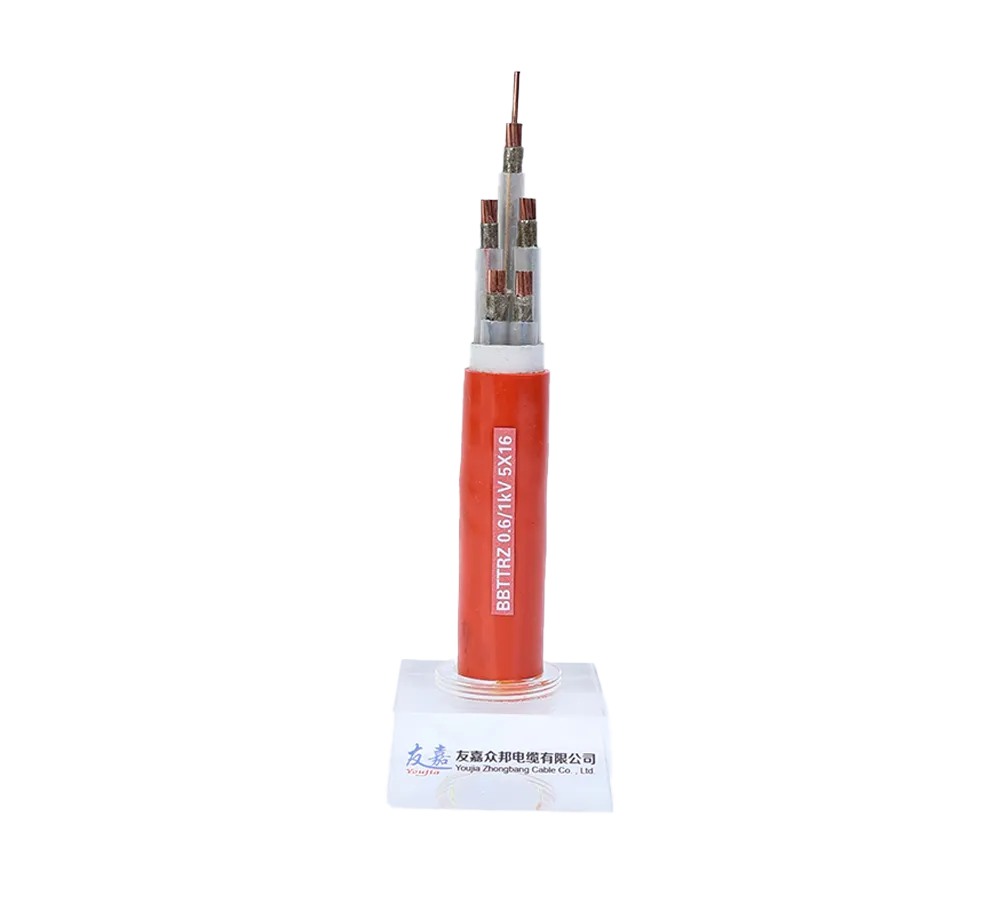

Mineral insulated fireproof cable is a special cable that uses magnesium oxide (MgO) as insulation material and copper tube as sheath. It has excellent characteristics such as fire resistance, high temperature resistance, explosion-proof, smokeless and non-toxic. The product complies with international standards such as BS 6387 and GB/T 13033, and is the first choice cable for key places such as fire protection systems and emergency power supply.

Catalog

Contact

All Product Categories

Details

Product Details

Economical

Safe and Reliable

High Insulation Strength

Easy Installation

[: 001 ]

Product Categories

model	name	conductor	insulation	jacket	Temperature grade
BTTZ	Heavy copper core and copper sheath	copper	Magnesium Oxide	copper	250℃
BTTVZ	Lightweight copper core and copper sheath	copper	Magnesium Oxide	copper	105℃
NG-A	Lightweight copper core copper sheathed cable	copper	Mica tape	aluminum	950℃
YTTW	Flexible copper sheathed cable	copper	Mica tape	copper	1000℃

[: 002 ]

Technical Parameters

Electrical properties

The insulation resistance should be ≥1000MΩ・km under the test condition of 20℃ to ensure good insulation performance.

The voltage withstand test uses industrial frequency and requires a voltage of 3.5kV for 5 minutes to test the equipment's ability to withstand voltage.

The standard value of working capacitance is specified as ≤120pF/m. This test needs to be performed at a frequency of 1kHz to measure its capacitance characteristics under working conditions.

The above parameters and their corresponding standard values and test conditions are important indicators for evaluating electrical performance and are of key significance for ensuring the normal operation and safe use of equipment.

Fire performance

According to the BS 6387 test standard, under multiple harsh test conditions of 950℃ flame burning, mechanical vibration interference and water spray, after 3 hours of testing, it finally passed the test successfully and demonstrated excellent performance.

According to the IEC 60331 test standard, after continuous testing for 3 hours in a high temperature environment of 750°C, the device can still maintain a full power-on state, demonstrating good stability and reliability.

According to the GB 31247 test standard, the combustion calorific value is tested, requiring the combustion calorific value to be ≤1.8MJ/kg. The actual test results meet the standards and comply with relevant requirements.

These different test standards and their corresponding test conditions and results comprehensively and meticulously evaluate the performance of products in different dimensions, providing strong verification of product quality.

Mechanical environmental performance

Regarding tensile strength, the standard for BTTZ is ≥200 N/mm, whereas the standard for NG-A is ≥150 N/mm; by comparison, BTTZ exhibits superior tensile performance.

Regarding bending radius, BTTZ is ≥20D and NG-A is ≥10D; this indicates that BTTZ offers superior bending flexibility compared to NG-A, making it easier to bend during installation.

Operating temperature specifications indicate that BTTZ functions normally in environments ranging from -40°C to 250°C, whereas NG-A withstands fire test temperatures of 950°C for 3 hours, demonstrating superior capability in handling extreme temperatures.

In the event of a short circuit, both BTTZ and NG-A can withstand temperatures of 1,000°C for 5 seconds; the two perform comparably in terms of short-circuit temperature resistance.

BTTZ and NG-A each have their respective strengths and weaknesses across different parameters; BTTZ excels in tensile strength and bending radius, whereas NG-A offers an advantage in operating temperature range. Both provide reliable protection during extreme circuit faults due to their equivalent ability to withstand short-circuit temperatures.

[: 003 ]

Product Features

Absolutely fireproof

Passed 1000℃/3h fire resistance test (traditional cables only need 90min)

Smokeless and non-toxic when burning (smoke density ≤5%)

Super protection

Copper sheath waterproof and explosion-proof (IP68 protection grade)

Radiation and corrosion resistant (suitable for nuclear power plants)

Long-term stability

Expected lifespan: 50 years (common cables: 15-20 years)

Magnesium oxide insulation does not age

Intelligent monitoring

Optional integrated fiber optic temperature measurement system

Real-time monitoring of cable status

[: 004 ]

Typical Applications

conductor:

Annealed copper (round/sector)

insulation:

High density magnesium oxide powder (BTTZ) or mica tape (NG-A)

jacket:

Copper tube (BTTZ, thickness 0.5-1.2mm)

Section range:

1.5-400mm² (single core) / 1.5-25mm² (multi-core)

[: 005 ]

Selection Guide

Choose according to fire resistance requirements

If you need to meet the 3-hour fire resistance requirement, it is recommended to use BTTZ type cable, which has been verified by the BS 6387 CWZ test standard and can maintain stable performance under the test of fire for a long time.

For scenarios where the fire resistance time requirement is 1.5 hours, NG-A cable is a suitable choice. It complies with the GB/T 19216 test standard and can ensure uninterrupted power transmission within the corresponding time.

The YTTW cable can meet the 3-hour fire resistance requirement and has been tested according to the IEC 60331 test standard. It can effectively ensure the normal use of the cable in a short-term fire environment.

Different cable models correspond to different fire resistance time requirements, and their quality is controlled through corresponding testing standards. The adaptation of these standards and models provides a scientific basis for cable selection in engineering design, helping to ensure the safety and reliability of the power system in fire scenarios.

Select by laying method

When faced with direct burial or underwater laying conditions, BTTZ cable becomes an ideal choice due to its copper sheath sealing characteristics. This sealing structure can effectively resist soil corrosion and water penetration, ensuring long-term and stable operation of the cable.

In the bridge laying scenario, NG-A cable stands out with its lightweight feature. Its lightweight material is not only easy to install and carry, but also reduces the bearing pressure of the bridge and improves the laying efficiency and safety.

Different laying conditions have different requirements for cable performance. The above corresponding solutions are accurately matched according to the characteristics of each cable, providing reliable guarantees for various complex laying projects and effectively improving the stability and durability of the power transmission system.

[: 006 ]

Installation Guidelines

Special tool requirements

A hydraulic end capping machine must be used

Moisture-proof sealing should be done immediately after cutting

Special tool requirements

Fixed spacing ≤0.8 m (horizontal) / 1 m (vertical)

Bending radius ≥ 6D (BTTZ) / 10D (NG-A)

Grounding requirements

Both ends of the copper sheath are grounded (grounding resistance ≤ 4Ω)

Use copper braid transition connection

[: 007 ]

Quality Assurance

In terms of implementation standards, the project strictly follows GB/T 13033 and IEC 60702 standards to ensure that every link from product development to production meets the dual international and domestic regulatory requirements, ensuring the reliability and stability of product quality.

Regarding the warranty period, the project provides a warranty service of up to 10 years (including installation), covering the entire life cycle of the product. Whether it is a performance problem of the product itself or a quality defect related to the installation process, it will receive timely and professional after-sales guarantee.

In terms of certification, the project has obtained a number of authoritative certifications such as CE, UL, and CNAS. These certifications are comprehensive recognition of product safety, quality, and corporate management systems, demonstrating the project's competitiveness and credibility in the international market.

The above project commitments such as implementation standards, warranty period and certification fully reflect the project's strict control over quality and responsibility to customers, providing solid and reliable cooperation guarantees for partners and users.

[: 008 ]

Service Support

Design support:

Free fire resistance calculations

Installation training:

On-site guidance of terminal production

Testing services:

Provide third-party fire resistance test report

Note: BTTZ cables need to be stored in a dry environment (humidity ≤ 60%). It is recommended to perform a 1000V megohmmeter test after installation. Titanium alloy sheath models can be customized for special environments (such as the seabed and space).
